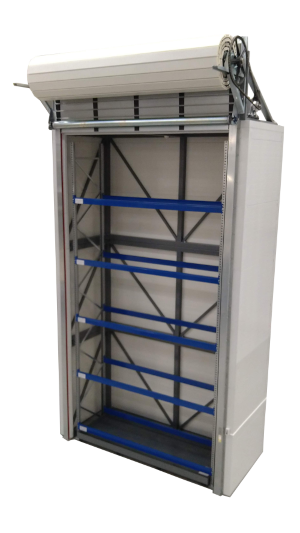

Pallet-IBC fire compartments (roller door)
| Model specifications | |
|---|---|
| Article number | CSD20E0RD |
| Storage Capacity | 20 euro pallets |
| Number of storage layers | 5 pcs |
| Number of pallets per storage tier | 4 pcs |
| External dimensions WxDxH | approx. 4610 x 2093 x 8785 mm |
| Door width (daylight size) | approx. 3910 mm |
| Door height (daylight size) | approx. 7350 mm |
| Article number | CSD20E0RD |
| Storage Capacity | 20 euro pallets |
| Number of storage layers | 5 pcs |
| Number of pallets per storage tier | 4 pcs |
| External dimensions WxDxH | approx. 4610 x 2093 x 8785 mm |
| Door width (daylight size) | approx. 3910 mm |
| Door height (daylight size) | approx. 7350 mm |
General specifications
Version 1.2 (short) | 14-9-2022
ChemosaverTM fire compartment series CS-D-RD (with roll-up door)
Design/fire resistance:
- Designed as an independent fire compartment for indoor storage of packaged hazardous materials based on the Building Code and guideline PGS 15: 2016 Version 1.0.
- Fire resistance (WBDBO) 60 minutes determined in case of fire from outside and fire from inside on all criteria of PGS 15:2016 Version 1.0, Regulation 3.2.9.
Execution:
- Suitable for multilayer storage (number of layers depending on model) of packaged hazardous materials.
- Storage layers formed by separate pallet rack(s) with height-adjustable beams.
- Shelf yokes galvanized; beams in RAL 5010/blue.
- Scaffolding constructed in accordance with NPR 5054 and NEN standard 5051.
Main supporting structure:
- Welded, steel main supporting structure based on a structural strength calculation (for the chosen use) according to the Building Code and the aforementioned European and Dutch standards for steel structures.
- Steel structure manufactured in bare steel , blasted and coated with approx. 100 µm Acraton zinc phosphate epoxy coating in RAL 7005/mouse gray.
- Fire resistance on criterion "collapse" (R-60 for main support structures).
Leak tray:
- Completely liquid-tight welded drip tray manufactured from steel plate.
- Drip tray blasted and coated with approx. 100 µm Acraton zinc phosphate epoxy coating in RAL 7005/mouse gray.
Housing:
- Roof and walls in slightly profiled galvanized 80 mm sandwich panels with a core made of non-combustible and insulating rock wool.
- Exterior color; a Myrialac® primer and polyester coating in RAL 7035/gray.
- Interior color; a Myrialac® primer and polyester coating in RAL 9002/white.
- Fire resistance of the sandwich panels = 60 minutes.
Rolling door (EI160):
- Front over entire width and height equipped with fire resistant roller door controlled by a chain wheel drive with motor and push button "open-stop-close".
- The door leaf is composed of double-walled slats in galvanized strip steel filled with high density insulation.
Ventilation openings:
- Ventilation and venting by diametrically placed ventilation openings fitted with flame-resistant mesh and fire-resistant grilles,so that they are automatically closed in case of fire.
- Ventilation openings on the inside and outside finished with galvanized vane grilles.
Grounding, anchoring:
- Grounding possibility through the base plate and foundation anchor.
- Standard equipped with lifting eyes on the roof surface for craning the unit empty . Standard provided with foot plates for anchoring to the foundation (excluding anchors).
- Danger signage by pictograms according to PGS 15, Ø and/or ? 200 mm, symbol: "smoking and naked flames prohibited" and "flammable (liquid) substances" (other pictograms available on request).
