Hiltra

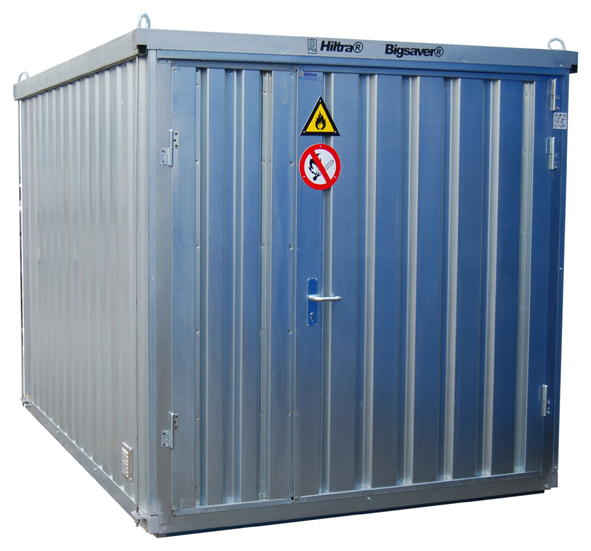

Bigsaver F60 model BS 3 (occasion HV > 3-108-1119)
.jpg)
| Model specifications | |
|---|---|
| Article number | 300220200 |
| Fire resistance | F60 in accordance with NEN6069 (Efectis report) |
| External dimensions LxWxH | 3010 x 2170 x 2250 mm |
| Exterior finish | Galvanized trapezoidal profiles unpainted (CAUTION ! Pictured painted) |
| Internal dimensions LxWxH | 2730 x 1810 x 1925 mm |
| Load-bearing capacity grid floor | 1300 kg/m2 |
| Collection tray | Steel painted with galvanized gratings |
| Collection tray content | 380 liters |
| Weight | 1390 kg |
| Door | Single right hinged wing door W=1300 mm |
| This Bigsaver is optionally equipped with: | |
| Electro | Atex Bulleye lighting incl. Atex switch and Atex ASKK |
| Electro | Atex fan incl. rain hood and Atex Motor Protection Switch |
| Option B (300220402) | Finish inside and outside drip tray with Acraton coating |
| Option D1 (300220220) | Double-leaf hinged door B=1800 mm in the short side |
| Option F (190140209) | Roof flange Ø 80 mm for connection of ventilation system |
| Opte G (300220407) | GRP coating on inside of drip tray |
| Option S (300220403) | Interior finish entirely with hot-dip galvanized steel sheet |
| Article number | 300220200 |
| Fire resistance | F60 in accordance with NEN6069 (Efectis report) |
| External dimensions LxWxH | 3010 x 2170 x 2250 mm |
| Exterior finish | Galvanized trapezoidal profiles unpainted (CAUTION ! Pictured painted) |
| Internal dimensions LxWxH | 2730 x 1810 x 1925 mm |
| Load-bearing capacity grid floor | 1300 kg/m2 |
| Collection tray | Steel painted with galvanized gratings |
| Collection tray content | 380 liters |
| Weight | 1390 kg |
| Door | Single right hinged wing door W=1300 mm |
| This Bigsaver is optionally equipped with: | |
| Electro | Atex Bulleye lighting incl. Atex switch and Atex ASKK |
| Electro | Atex fan incl. rain hood and Atex Motor Protection Switch |
| Option B (300220402) | Finish inside and outside drip tray with Acraton coating |
| Option D1 (300220220) | Double-leaf hinged door B=1800 mm in the short side |
| Option F (190140209) | Roof flange Ø 80 mm for connection of ventilation system |
| Opte G (300220407) | GRP coating on inside of drip tray |
| Option S (300220403) | Interior finish entirely with hot-dip galvanized steel sheet |
